China Factory Customized Screw Second Punch M2 / M42 / HSS Screw Head Punch Hexagon Socket Punch

Product Categories

Tungsten Carbide Die [139]
Carbide Punches And Dies [62]
Cold Forging Die [50]
Cold Heading Die [77]
Screw Second Punch [72]
HSS Punches [99]
Nut Forming Dies [43]
Die Cutting Knife [12]
Shear Die [20]
Thread Rolling Die [52]
Trimming Die [67]
Cold Heading Machine [10]
Precision Screw [229]
Rivet Nut [85]

Chongqing Henghui Precision Mold Co., Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

China Factory Customized Screw Second Punch M2 / M42 / HSS Screw Head Punch Hexagon Socket Punch

Name: China Factory Customized Screw Second Punch M2 M42 HSS Screw Head Punch Hexagon Socket Punch
Brand: Henghui
Price: 2 USD

Buy cheap China Factory Customized Screw Second Punch M2 / M42 / HSS Screw Head Punch Hexagon Socket Punch product

Brand Name : Henghui

Model Number : Customized

Place of Origin : China,Chongqing

MOQ : 10 pieces

Price : usd 2-10 pieces

Payment Terms : T/T, Western Union

Supply Ability : 1000 pieces per Month

Delivery Time : 3-5 days

Packaging Details : Wooden box for Circular Screwing Die; export standard package for Circular Screwing Die, or as client's requirement for EJECTOR PINS SKD61 .

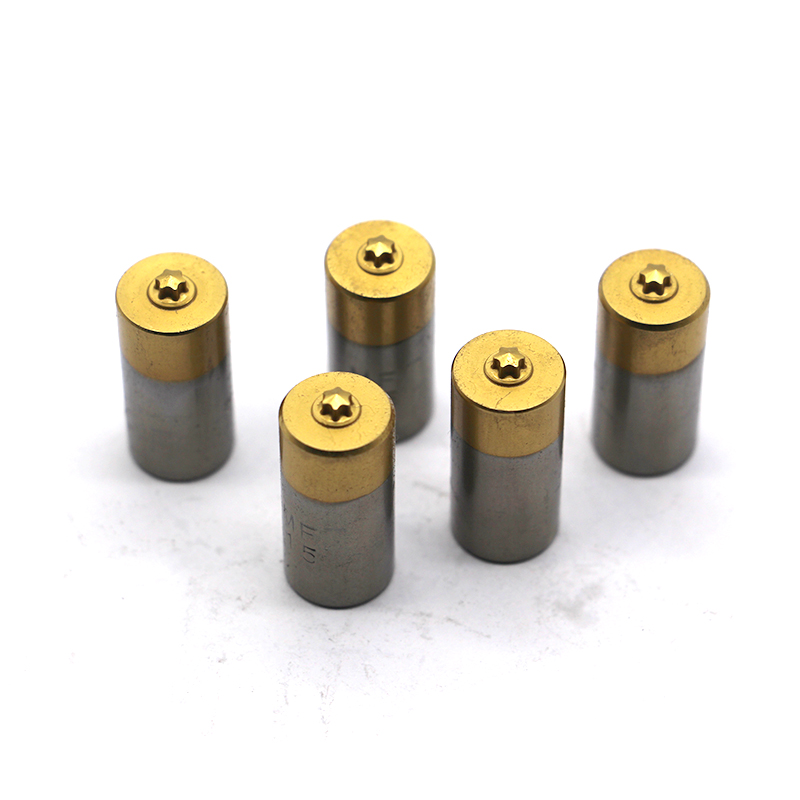

Product Name : Screw Second Punch

Material : M2+TIN

Aplication : For Screw Making

Size : Customized

Packaging : Standard Package

MOQ : 10 Pieces

Contact Now

China Factory Customized Screw Second Punch M2 / M42 / HSS Screw Head Punch Hexagon Socket Punch

Product Description

Material:

M42(H59)＞M35(H55)＞M2(H9)

H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated

Standard size	Weight
12x25mm	25g/pc
14x25mm	30g/pc
18x25mm	50g/pc
23x25mm	80g/pc

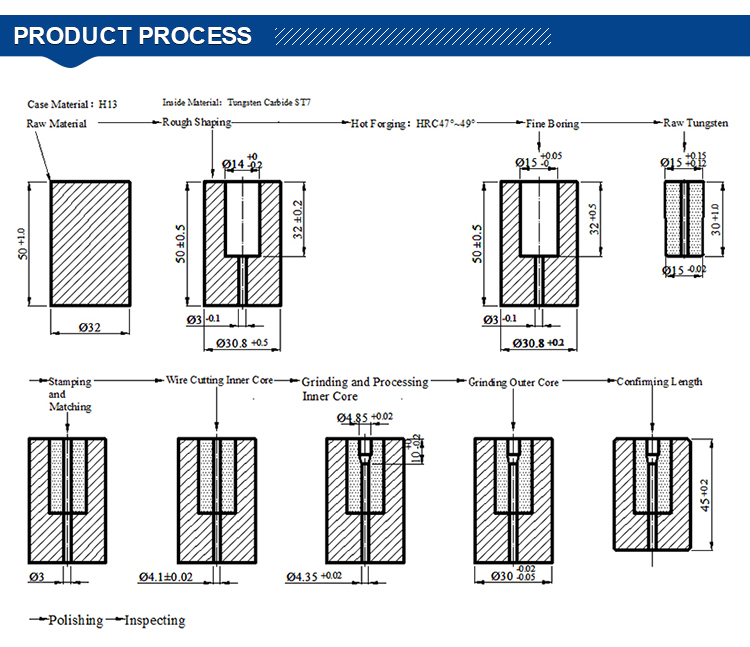

Process
