Screws Die Header Second Punch Case Customizable Size Materials

Place of Origin : Chongqing, China

Brand Name : HH

Model Number : Customized

Supply Ability : 500 Piece/Pieces per Month

Packaging Details : Cartons, wooden boxes, pallets, packaged according to weight and customer requirements

MOQ : 1

Price : USD+Negotioned+Pieces

Payment Terms : T/T, Western Union, Credit Card, MoneyGram

Delivery Time : 12-15 working days

Certification : //

Shaping Mode : Forging Mould

Product Material : Steel

Product : Household Product

Material : Tungsten Carbide

Precision : 0.01mm

Hardness : According to the Material

Surface treatment : Polishing

Product Name : Screws Die Header Second Punch Case

Port : chongqing port or as your request

Keyword : Second Punch Bushing

Contact Now

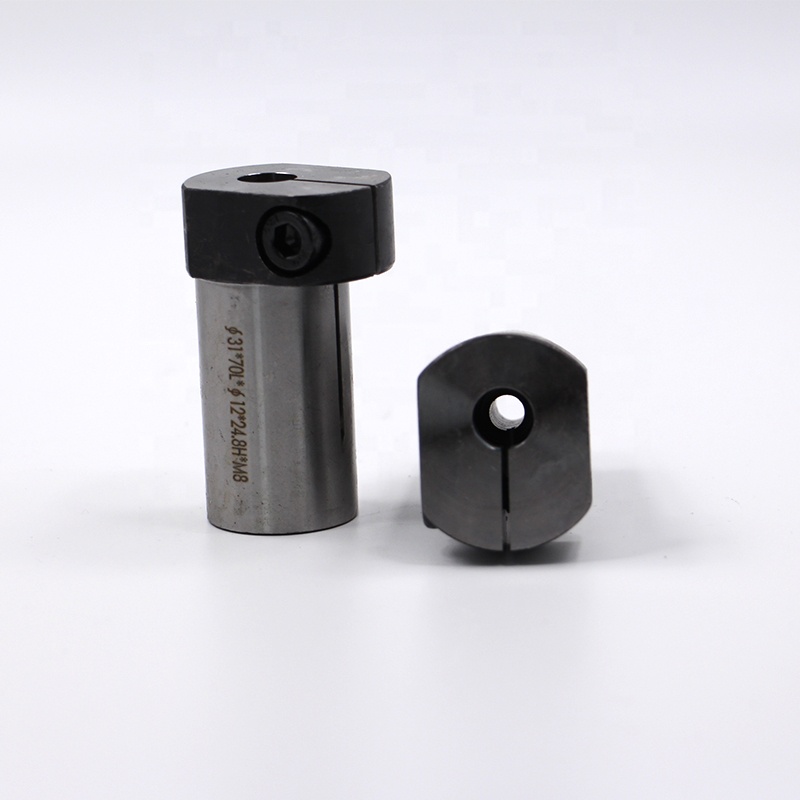

Second punch case
Chongqing Henghui precision mold Co., Ltd. is a professional screw mold production enterprise with strong technical force, professional production and strict quality control. Main production standard, non-standard special screw mold. According to the customer's requirements, we can produce and order: straight body, shrinking die, closing die, strong binding die, and triangle, hexagon and other multilateral main dies; carbide upper and lower punching and punching sleeve; sleeve, combined die sleeve; cutter; thread rolling die; Six-Lobe thimble, Six-Lobe protection sleeve; straight body, step, tail hole and other multi specification punching needles; punch, thread plate (thread rolling die) and other multi specification screw forming Mold.

Product Description
Chongqing Henghui Precision Mold Co., Ltd supply:
OEM&ODM service
ISO9001 Certification
100% virgin tungsten carbide powder

Product show:

 Screws Die Header Second Punch Case Customizable Size Materials

Product name
Screws Die Header Second Punch Case
Mold type
Punching mold

Brand
Henghui
Standard
nonstandard
Mold material
H13, SKD11 or required materials.
Cavity/core material
Slider
Lifter
Sub- insert
Specification
Customized as our requirements
Design software
UG, PRO-E, CAD, CAXA, Catia, Solid-work , etc.
Mold hot treatment
Including quencher, Nitridation, tempering, etc.
Mold cooling system
Water cooling or Beryllium bronze cooling, etc.
Surface treatment
polishing
Hardness of the steel
20-90 HRC
Mold life
10,000~1000,000 shots
Lead time
10-20 days
Mold Packing
Carton case


Equipment & Factory
  Quality being vital for an enterprise, high quality products are the powerful weapon to enter into international market. Out of a desire to produce superior products. Henghui company stresses on every particular in process. First-class products and strive to respond to the fierce market competition.

Screws Die Header Second Punch Case Customizable Size Materials
  Chongqing  Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision  molds  for  customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm.  Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Equipment Name
Specification(mm)
Qty(set)
Origin Making
CNC Machining Center
MCV-SV1100,
4
Taiwan
Lathe
C6132,CS6140
4
Baoji
Hydraulic Press
HQS300T
1
Taiwan
Internal and external high-precision grinder
M1420
1
Wuxi
Surface Grinder
MY820
2
Jiangsu
Cylindric Grinder
MA1420A
1
Japan
Clamping Machine
HC650
1
Baoji
Sawing Machine
GB4028
1
Zhejiang
CNC Milling Machine
MVC1000A
1
Taiwan
Milling Machine
SL-30
1
Taiwan
CNC Wire-Cut Machine
DK7732, DK7780
2
Jiangsu
Grinding Machine
K11
5
Zhejiang
EDM Machine
EDM320, EDM350
2
Beijing
NC Lathe
CK6730
3
Baoji
Driller
ZX7016
1
Zhejiang
Cold Heading Machine
J64,J84, J104, J134, J165
8
Taiwan
 Automatic Lathe
---
4
Taiwan
Cold Forming Machine
11B,14B,17B,22B,24B,27B
6
Taiwan
Heading Machine
---
6
Taiwan


Why Choose Us

Our advantages
 1.High quality
 2.Reasonable price
 3.On time delivery
 4.Good After-sale service
 5.Strict quality control
 6.All the mold are automotic.
We will offer you
 1.In-time response on letters, telephone calls or fax
 2.In-time supply the quotation and mold designs
 3.In-time communication on the technical points
 4.In-time sending pictures for the mold machining  progress and mold finishing
 schedule
 5.In-time mold test and sample delivery
 6.In-time mold delivery.


Sample Charge for our Screw Mold and Screw :

1.Sample charge:According to your design.Sample time:3-5 days
 2.Sample charge: For Existing samples.Sample time:1 day

Usual we choose the following ways to ship our molds, if there is any other choices or requirements, we also welcome.

Exhibition
  The global demand for fasteners is constantly increasing, driven by the strong global economy and a steady growth especially in the construction, aerospace, automotive and white goods markets. The broad and versatile scope of application for fasteners and fixings continues to create opportunities for manufacturers and suppliers of these technologies. With ever changing requirements and advancements in various industry sectors, new business opportunities are opening for the future. So Henghui participated in many international exhibitions.
Screws Die Header Second Punch Case Customizable Size Materials


Packaging & Shipping
  Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.
Screws Die Header Second Punch Case Customizable Size Materials
