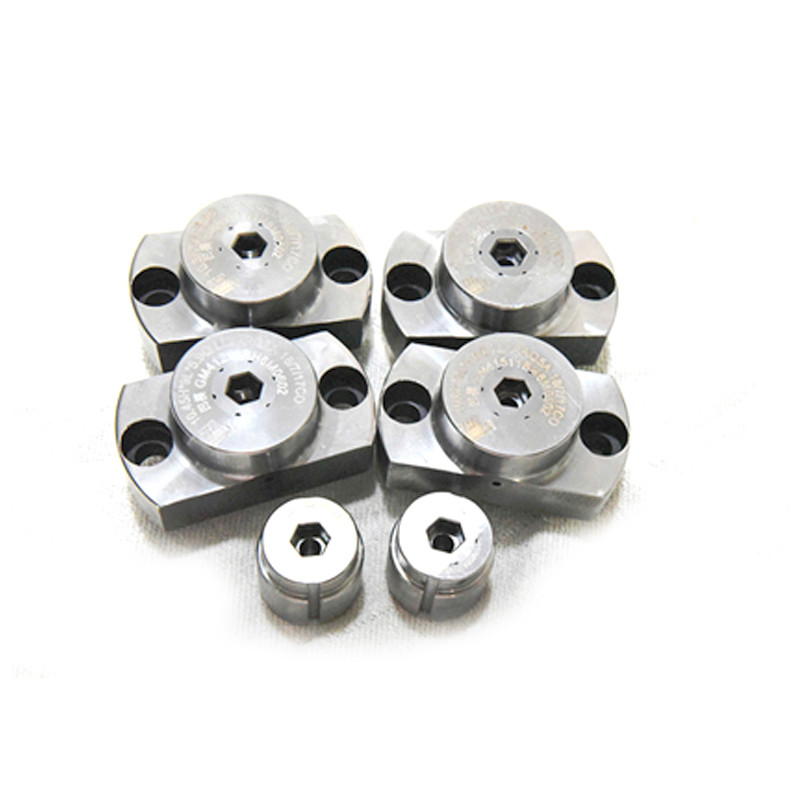

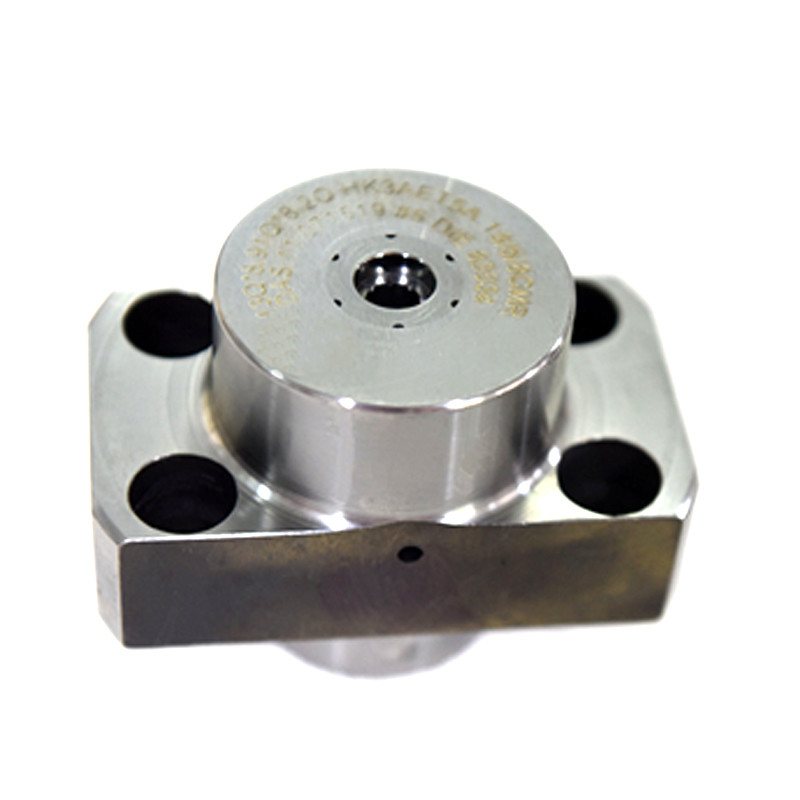

Nut Die Tungsten Carbide Hexagonal Nuts Segmented Screw Forming Dies

Name: Nut Die Tungsten Carbide Hexagonal Nuts Segmented Screw Forming Dies
Brand: Henghui
Price: 50 USD

Buy cheap Nut Die Tungsten Carbide Hexagonal Nuts Segmented Screw Forming Dies product

Brand Name : Henghui

Model Number : Customized

Place of Origin : Chongqing

MOQ : 1 pc

Price : $50-$58

Payment Terms : Western Union, T/T

Supply Ability : 5000

Delivery Time : 25 days

Packaging Details : carton

Product Name : Hot Forging Carbide Die for Making Screws or Bolts

Matreial(carbide) : VA80, ST7, ST6, KG5, KG6

Product Material : Steel and carbide

Standard : DIN, ANSI, GB, ISO, JIS, GOST etc.

Samples : Avaliable

Tolerance : +/-0.01

Mould life : Long life time

Usage : for making screws, bolts or nuts

Keyword : Square head clamp

Contact Now

Henghui Customized Designed Nut Forging Carbide Die For Making Screws Or Bolts

Products Description

Nut Die Tungsten Carbide Hexagonal Nuts Segmented Screw Forming Dies

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:

TiN / TiAlN

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
