Brand Name : HH

Model Number : Customized

Place of Origin : Chongqing

MOQ : 1 pc

Price : $50-$58

Payment Terms : T/T, Western Union

Supply Ability : 2000/month

Delivery Time : 12-15 days

Packaging Details : carton

Product Name : Extrusion dies

Material : Carbide

Usage : screw making

Design software : CAD

Feature : High Precision

Type : CNC Process

Service : After-sale Service

Surface treatment : Polishing

Contact Now

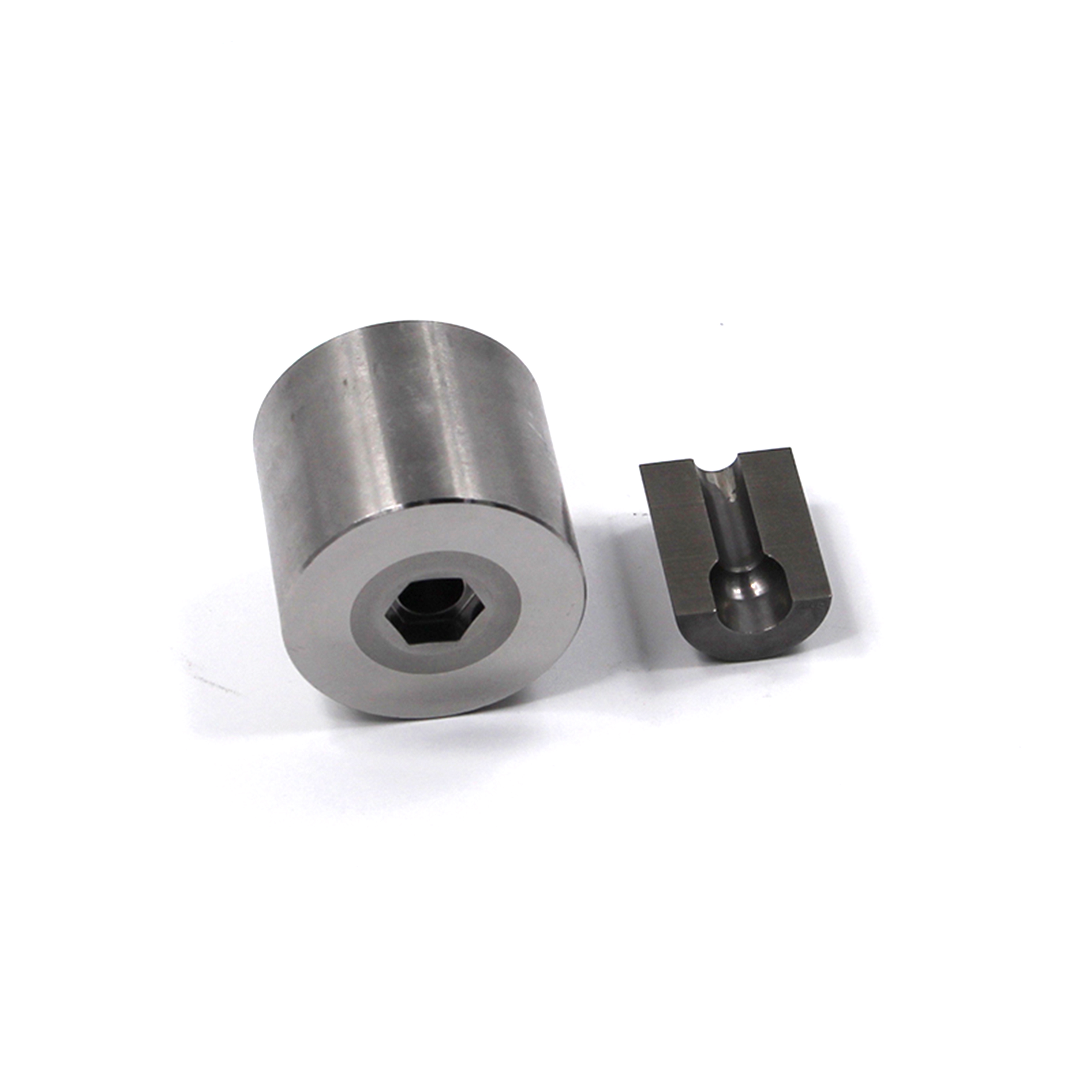

Customized Wear Push Resistance Tungsten Carbide Extrusion Die

Products Description

Features 1, Corrosion resistance

2, Oxidation resistance 3, Wear push resistance

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

Surface Treatment:

TiN / TiAlN
