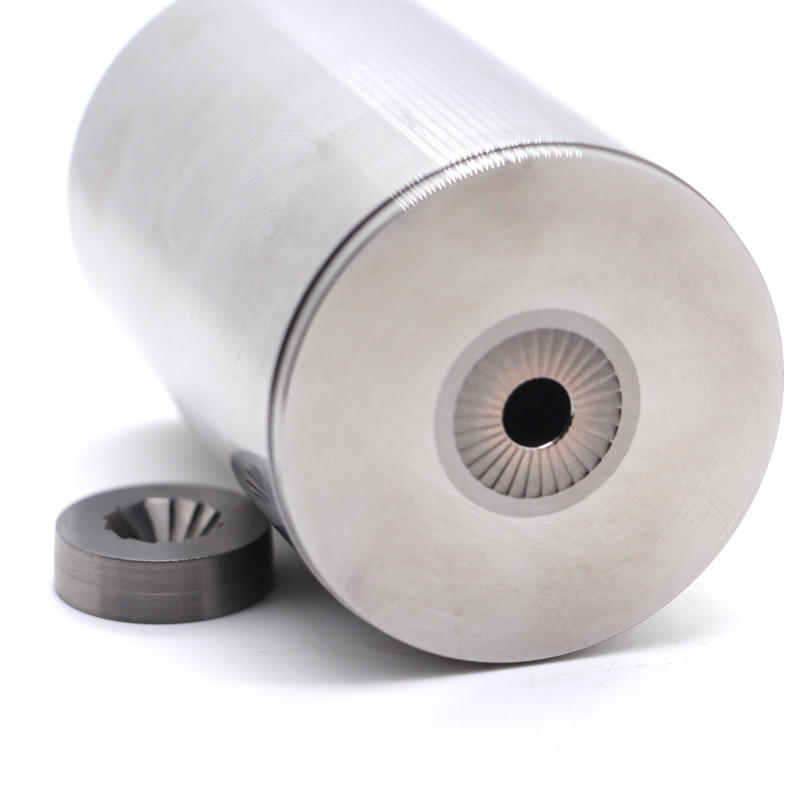

Customizing Special Shapes For Marking Screw Serrated Punching Dies

Brand Name : //

Model Number : customized

Certification : //

Place of Origin : chongqing

MOQ : 1

Price : USD+Negotioned+Pieces

Payment Terms : T/T, Western Union

Supply Ability : 500 Piece/Pieces per Month

Delivery Time : about 12days

Packaging Details : carton, according to customer requirements.

Product material : tungsten carbide,Steel

Product name : tungsten carbide forging die

Application : Mining,Extrusion Mold

Size : Customer Size Accepted

Mould life : According to your requirement

Surface treatment : Polishing

Advantage : High toughness & good wear resistance

Usage : For cold heading and cold punching fasteners

Tooling machine : EDM/Wire cutting/Grinding/Milling/QC/CNC

Whether it is matched : Yes

Contact Now

Customizing Special Shapes For Marking Screw Serrated Punching Dies

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Customizing Special Shapes For Marking Screw Serrated Punching Dies

Our special product, serrated die punch. According to the customer's requirements, if you are interested, you can contact us.

We supply for customer including:

Carbide die: 1.Straight hole dies 2.Extrusion dies 3.Segmented Hex Dies 4.Cutter&knife 5. nut die
Tube drawing dies
Cutting&Trimming dies
Thread rolling die
second punch
punch pin HSS

CNC parts

Features:

• 100% quality guarantee

• Various size for selection

• Professional technical support

• OEM & ODM are welcomed

• Small order is acceptable

• Factory service with competitive service in the market

• Delivery in time

• Flexible payment terms(T/T, western union, etc.)

• Best after-sales service

Our Company

Customizing Special Shapes For Marking Screw Serrated Punching Dies

Packaging & Shipping:

Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.

Product Tags:

Screw Serrated Punching Dies

Marking Screw Serrated Punching Dies

Tungsten Carbide Forging Die
