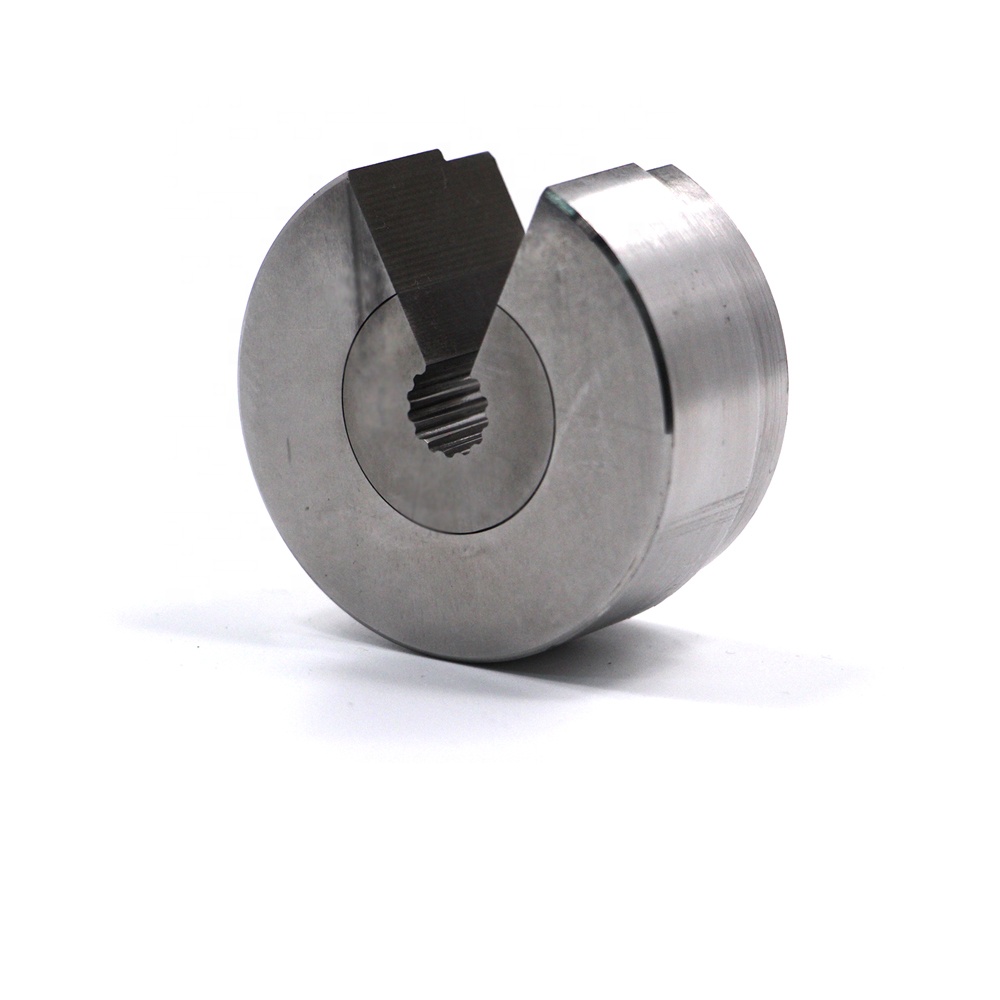

VA80 Mirror Polishing Serration Carbide Main Dies High Precision Mold
| Minimum and maximum dimensions: |
| Holes from 1,0 up to 40 mm, outer dimensions from 10 up to 200 mm, length from 1,0 up to 300 mm. |
| Mirror polish before and after coating. |
| Different technologies. |
| ± 0.005 mm tolerances. |
| Possibility of tooling design. |
| Mechanical Processing surfaces when it is geometrically possible. |
Henghui will choose the suitable carbide materials of products, combined with perfect technology, makes the carbide dies to achieve a better life.Tungsten carbide straight hole dies with the property of high wear resistance, good polishing performance, low friction coefficient, etc.and has very high compressive strength.
Even today, steel mold are still in use due to they're cheap, as tungsten carbide parts tend to cost more up front. The performance benefits that tungsten carbide dies have to offer, however, easily justify their price point.
The primary advantage of tungsten carbide die is strength. Carbide dies, which are notable for offering more satisfactory performance than steel counterparts, tend to last significantly longer, too – even in extreme conditions. Thanks to this durability, our tungsten carbide dies require replacement much less often than typical steel dies, which not only reduces overall maintenance costs, but lessens machine downtime as well.
We supply for customer including:
Carbide die: 1.Straight hole dies 2.Extrusion dies 3.Segmented Hex Dies 4.Cutter&knife 5. nut die
Tube drawing dies
Cutting&Trimming dies
Thread rolling die
2nd punch
punch pin HSS
Features:
• 100% quality guarantee
• Various size for selection
• Professional technical support
• OEM & ODM are welcomed
• Small order is acceptable
• Factory service with competitive service in the market
• Delivery in time
• Flexible payment terms(T/T, western union, etc.)
• Best after-sales service
| Equipment Name | Specification(mm) | Qty(set) | Origin Making |
| CNC Machining Center | MCV-SV1100, | 4 | Taiwan |
| Lathe | C6132,CS6140 | 4 | Baoji |
| Hydraulic Press | HQS300T | 1 | Taiwan |
| Internal and external high-precision grinder | M1420 | 1 | Wuxi |
| Surface Grinder | MY820 | 2 | Jiangsu |
| Cylindric Grinder | MA1420A | 1 | Japan |
| Clamping Machine | HC650 | 1 | Baoji |
| Sawing Machine | GB4028 | 1 | Zhejiang |
| CNC Milling Machine | MVC1000A | 1 | Taiwan |
| Milling Machine | SL-30 | 1 | Taiwan |
| CNC Wire-Cut Machine | DK7732, DK7780 | 2 | Jiangsu |
| Grinding Machine | K11 | 5 | Zhejiang |
| EDM Machine | EDM320, EDM350 | 2 | Beijing |
| NC Lathe | CK6730 | 3 | Baoji |
| Driller | ZX7016 | 1 | Zhejiang |
| Cold Heading Machine | J64,J84, J104, J134, J165 | 8 | Taiwan |
| Automatic Lathe | --- | 4 | Taiwan |
| Cold Forming Machine | 11B,14B,17B,22B,24B,27B | 6 | Taiwan |
| Heading Machine | --- | 6 | Taiwan |
Packaging & Shipping:
Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.
Why Choose Us
Our advantages:
1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control
We can offer you:
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and TRIMMING DIE designs
3.In-time communication on the technical points
4.In-time sending pictures for the die machining progress and die finishing schedule
5.In-time mold test and sample delivery
6.In-time delivery.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District, Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The material are die steel, tungsten carbide, HSS(high speed steel), or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui always attach great importance to quality controlling from the very beginning to the very end. All the molds, the quality control measure with three-D measuring equipments regularly.
